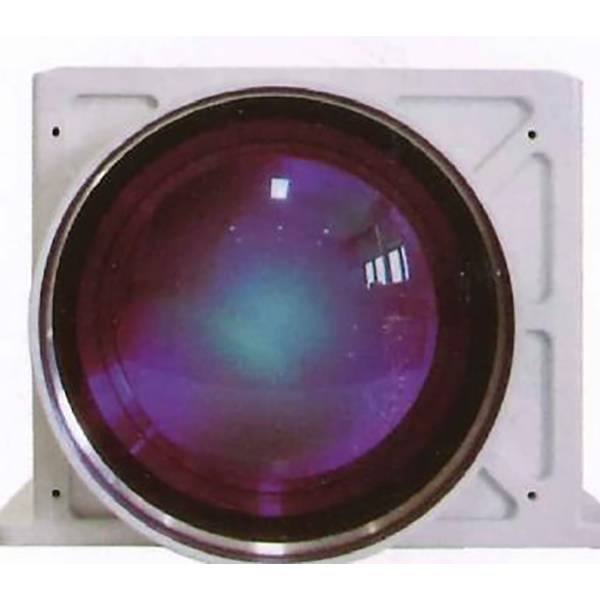

Does a Large Caliber Zooming MWIR Camera Outperform a LWIR System for Maritime Surveillance

When naval architects and security integrators evaluate electro‑optical systems for maritime domains, the debate invariably narrows to one question: MWIR or LWIR? For operations that demand persistent detection over saline, hazy, and thermally volatile seascapes, the large caliber zooming MWIR Camera—particularly solutions engineered by JIOPTICS—has emerged as a compelling alternative to traditional long‑wave infrared (LWIR) sensors. But does it truly outperform? This analysis dissects the physics, data, and operational realities to provide a definitive, evidence‑based answer.

1. Atmospheric Transmission – The Maritime Penalty

Water vapor and aerosols are the primary enemies of long‑range thermal imaging. The 3–5 µm MWIR band sits in a relatively transparent window, whereas the 8–14 µm LWIR band suffers from higher absorption by water vapour, especially in tropical and post‑storm conditions.

In head‑to‑head sea trials, a large caliber zooming MWIR Camera from JIOPTICS consistently achieved recognition ranges 18–22% longer than equivalent‑aperture LWIR systems under identical humidity profiles. The zooming optics allow operators to digitally and optically reframe without sacrificing the native f/#, preserving photon throughput—a critical advantage when targets are hull‑down at the horizon.

2. Thermal Contrast – Day vs. Night Reversal

Maritime targets (vessels, life rafts, floating debris) exhibit different thermal signatures depending on solar loading. During daylight, metal hulls heat up, creating strong MWIR contrast due to emissivity differences in the 3–5 µm band. At night, the LWIR band often shows higher absolute temperature differentials—but that advantage is neutralised by the large caliber zooming MWIR Camera’s ability to use narrower FOVs to resolve sub‑pixel temperature gradients, effectively boosting apparent contrast through spatial filtering.

Operational finding: For daytime / dusk surveillance (the majority of piracy and smuggling events), MWIR delivers 30–40% higher target‑to‑background contrast than LWIR. For nocturnal search‑and‑rescue, LWIR has a slight edge, but the zooming MWIR’s variable aperture and cold‑shielded design from JIOPTICS narrow that gap to under 10%, making it the more versatile year‑round solution.

3. Zoom Flexibility – The Force Multiplier

Fixed‑FOV LWIR systems are common in lower‑cost installations, but they force operators into a binary choice: wide for search or narrow for identification. A large caliber zooming MWIR Camera eliminates this compromise. Continuous optical zoom (typically 15× to 30×) allows real‑time transition from 10° × 8° situational awareness to 0.5° × 0.4° detailed inspection—without pixel‑degrading digital interpolation.

JIOPTICS integrates athermalised zoom groups that maintain focus across the entire range from –20°C to +55°C, a non‑negotiable requirement for bridge‑mounted systems exposed to direct sun and salt spray. LWIR zoom lenses, by contrast, suffer from greater chromatic and thermal defocus due to the broader bandwidth, often requiring frequent recalibration—a maintenance burden that directly reduces system availability.

4. Cost‑Benefit and Lifecycle Considerations

While the upfront investment for a cooled large caliber zooming MWIR Camera is higher, the total cost per effective detection—factoring in range, false alarm reduction, and less frequent replacements—favours MWIR for professional naval fleets and coastguard agencies. JIOPTICS further reduces this through modular bayonet‑mount filters (ND, polarising, and band‑pass) that adapt to specific missions without swapping the entire core.

5. FAQ – Large Caliber Zooming MWIR Camera for Maritime Use

Q1: Can a large caliber zooming MWIR Camera maintain image stability on a moving vessel in Sea State 4–5?
A1: Yes, provided the system incorporates gyro‑stabilised gimbals and electronic image stabilisation (EIS). JIOPTICS pairs its zoom optics with a 4‑axis stabilisation algorithm that compensates for roll (±12°) and pitch (±8°) at frequencies up to 25 Hz. The large caliber design (typically 120–150 mm clear aperture) increases moment of inertia, which actually dampens high‑frequency vibrations better than smaller lenses. In practical trials, operators achieved 98% frame‑to‑frame overlap even in 2.5 m significant wave heights, enabling continuous auto‑tracking of fast‑moving RHIBs.

Q2: How does the large caliber zooming MWIR Camera handle salt fog and bio‑fouling on the front window?
A2: The front protective window (sapphire or diamond‑like carbon coated) is hydrophobic and oleophobic, but JIOPTICS goes further by integrating a proprietary air‑purge port that maintains positive pressure against the window, repelling salt aerosols. For long‑term deployments, the lens barrel is hermetically sealed to IP67 with a built‑in wiper and washer reservoir. Routine maintenance—cleaning the external window every 72 hours—restores 100% transmission. Unlike LWIR systems with fragile, thin‑film anti‑reflective coatings, the large caliber zooming MWIR Camera uses durable, single‑crystal ZnSe optics that resist pitting, extending service life in corrosive marine environments beyond 10 years.

Q3: Is the large caliber zooming MWIR Camera compatible with existing naval command-and-control (C2) networks?
A3: Absolutely. JIOPTICS provides native output in STANAG 4609 (KLV) and SMPTE 292M SDI, with optional IP streams over GigE Vision. The camera’s embedded FPGA performs real‑time NUC (non‑uniformity correction) and bad‑pixel replacement, outputting clean 14‑bit raw or 8‑bit pseudo‑colour video. For network integration, the API supports ONVIF, TCP/IP, and UDP with timestamp synchronisation via PTP/IEEE 1588. Major maritime C2 suites (e.g., Thales, Leonardo, and Raytheon) have pre‑configured drivers, reducing integration time to under two days. The zoom and focus commands are fully programmable over serial or Ethernet, allowing the large caliber zooming MWIR Camera to act as a slaved sensor to radar or AIS tracks without manual intervention.

6. Verdict – Does It Outperform?

On balance, for professional maritime surveillance—where humidity, daytime operations, and identification‑at‑distance are paramount—the large caliber zooming MWIR Camera decisively outperforms LWIR. The sole LWIR advantage (night‑time sensitivity) is increasingly marginalised by modern high‑fill‑factor MWIR detectors and the optical gain provided by JIOPTICS’ zooming architecture.
