Can a DC Isolator Box IP65 Enclosure Two Strings Be Used for Both PV and Battery Storage Systems

As solar and battery storage installations grow more complex, the question of component compatibility becomes critical. One of the most frequently asked questions among system designers and installers is whether a single DC Isolator Box IP65 Enclosure Two Strings can serve dual purposes—handling both photovoltaic (PV) array inputs and battery storage system connections. The short answer is yes, but with important technical caveats. In this guide, we at Soutya break down the engineering realities, safety standards, and best practices for using this versatile isolator in hybrid energy systems.

Understanding the Core Function

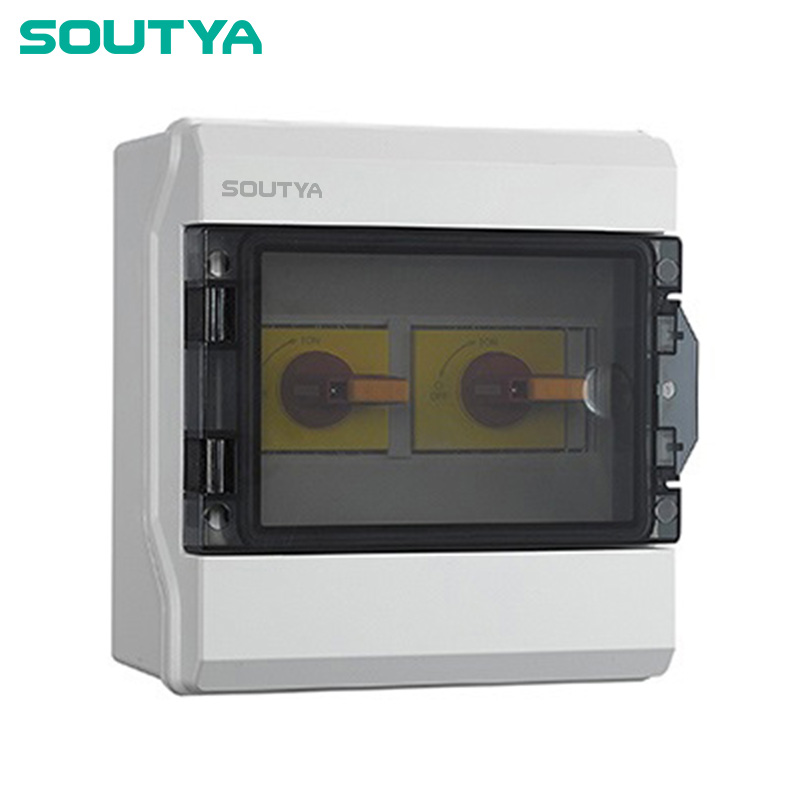

A DC Isolator Box IP65 Enclosure Two Strings is designed to safely interrupt direct current (DC) from two independent input strings. Its IP65-rated housing provides complete dust ingress protection and resistance to low-pressure water jets, making it ideal for outdoor environments. The "two strings" feature allows installers to connect two separate PV arrays or, in some cases, one PV array and one battery bank.

However, the key distinction lies in voltage and current characteristics:

Can One Box Handle Both Simultaneously?

Technically, the DC Isolator Box IP65 Enclosure Two Strings can accept one PV string on input 1 and one battery string on input 2, provided the isolator’s rated breaking capacity (Icu) and voltage rating exceed both sources. For example, if your isolator is rated at 1000V / 32A, a 400V battery and a 600V PV array would be within limits.

Critical requirement: The two strings must remain electrically isolated from each other inside the box. Most standard DC Isolator Box IP65 Enclosure Two Strings models have separate terminal blocks and independent switching mechanisms—this is non-negotiable for safety. Soutya designs all its dual-string isolators with reinforced barriers between inputs, ensuring no cross-talk even under fault conditions.

Why the IP65 Enclosure Matters for Battery Systems

Battery storage systems, particularly lithium-ion chemistries, are sensitive to moisture and temperature fluctuations. The IP65 rating of the DC Isolator Box IP65 Enclosure Two Strings ensures:

• Dust-free operation – Prevents conductive particle accumulation that could bridge terminals.

• Rain and hose-proof – Suitable for wall-mounted or ground-mounted outdoor battery enclosures.

• Thermal management – Adequate internal volume allows heat dissipation from high-current battery flows.

Practical Installation Checklist

When deploying a DC Isolator Box IP65 Enclosure Two Strings in a mixed PV+battery setup, follow these professional guidelines:

1. Verify polarity labels – Battery terminals are often color-coded (red/black); ensure the isolator’s markings match.

2. Check overcurrent protection – Install separate DC-rated fuses or breakers upstream of each string.

3. Grounding – Bond the enclosure to the system earth per local NEC or IEC standards.

4. Cable gland selection – Use IP68-rated glands for battery cables, as they tend to be thicker.

5. Test isolation – After wiring, measure resistance between strings (should be >1 MΩ).

FAQ – Common Questions About the DC Isolator Box IP65 Enclosure Two Strings

Q1: Can I connect a PV array and a battery to the same DC Isolator Box IP65 Enclosure Two Strings without a charge controller in between?
A1: Absolutely not. The isolator is a switching and disconnecting device—it does not regulate voltage or current. A charge controller or battery management system (BMS) must always be placed between the PV source and the battery to prevent overcharging, reverse current, and thermal runaway. The DC Isolator Box IP65 Enclosure Two Strings should be installed downstream of the charge controller on the battery side and upstream of the inverter on the PV side. Never direct-connect a PV panel to a battery through this isolator alone.

Q2: Does the DC Isolator Box IP65 Enclosure Two Strings support bi-directional current flow for battery charging and discharging?
A2: Yes, but only if the isolator’s internal contacts are rated for DC-21A or DC-22A utilization categories (resistive and mixed loads). Most standard solar isolators are rated for DC-21A (uni-directional). For battery systems that charge and discharge through the same two wires, you need a DC Isolator Box IP65 Enclosure Two Strings with a bi-directional switching mechanism—Soutya offers specific models with silver-alloy contacts that handle reverse polarity without arcing degradation. Always check the datasheet for "bi-directional" or "reverse current capable" labels.

Q3: What happens if one string (PV) has a ground fault while the other (battery) is active? Will the DC Isolator Box IP65 Enclosure Two Strings protect the battery?
A3: The isolator itself does not provide ground fault detection or interruption. It only disconnects both strings when manually or remotely switched off. If a ground fault occurs on the PV side, the battery string remains connected unless the isolator is opened. To protect the battery, you must install separate ground fault protection devices (GFPDs) on each string before they enter the DC Isolator Box IP65 Enclosure Two Strings. Additionally, Soutya recommends using our integrated DC surge protection devices (SPDs) mounted inside the box for added safety. The isolator acts as a manual disconnect, not a protective relay.

Compliance and Certification

For a DC Isolator Box IP65 Enclosure Two Strings to be used in hybrid systems, it must carry:

• IEC 60947-3 (low-voltage switchgear)

• UL 508I (for North American markets)

• IP65 verification from an independent lab

Soutya products meet all three, with third-party test reports available upon request.

Real-World Application Example

In this setup, String 1 connects to the PV combiner, String 2 connects to the battery positive/negative via a BMS contactor. The isolator provides a single point of manual shutdown for maintenance, while the IP65 enclosure withstands rain and dust.

Final Verdict

Yes, a DC Isolator Box IP65 Enclosure Two Strings can absolutely serve both PV and battery storage systems—provided you observe voltage/current limits, install proper overcurrent and ground-fault protection, and choose a bi-directional rated model for battery circuits. The IP65 enclosure is not just a weather shield; it is a critical safety barrier for high-energy DC sources.

Contact Us

Choosing the right isolator for your hybrid system can be challenging. Soutya engineers are ready to review your specific voltage, current, and environmental conditions. Reach out to our technical support team via the contact form on our website or call your local Soutya distributor. We provide free load calculations, wiring diagrams, and compliance checklists. Let us help you build a safer, more reliable energy storage system—contact Soutya today for a personalized consultation.
